The Spoke Axle Series is a heavy-duty axle system specially designed for commercial trailers, engineering transport vehicles, mining trucks, and off-road heavy-duty transportation applications. Featuring a spoke wheel hub structure, this axle series delivers superior load-bearing performance, excellent durability, and enhanced resistance to harsh working conditions.

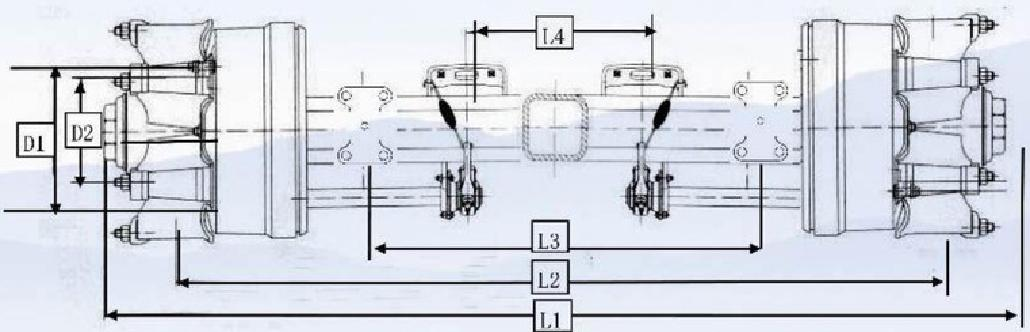

| Model | Capacity(T) | Brake(m) | Distance of brake chamber L4 | Axle Tube (mm) | Center distance of spring seat L3 | Stud | P.C.D D1 | Seam allowance D2 | Track L2(mm) | Bearing Inner/Outer | Total Length L1(mm) | Weight(KG) | Recommend ed Wheel |
| ZY-A1079 | 13 | 420×180 | 383 | φ127 | ≥980 | 5×3/4″ | φ285.75 | φ241 | 1850 | HM518445 | ≈2180 | 375 | 20″×5 Spoke type |
| ZY-A1080 | 13 | 420×180 | 383 | φ127 | ≥980 | 6×3/4” | φ285.75 | φ241 | 1850 | HM51845 | ≈2180 | 380 | 20″×6 Spoke type |
| ZY-A108 | 13 | 420×180 | 383 | φ127 | ≥980 | 5×3/4” | φ285.75 | φ241 | 1850 | HM518445 | ≈2180 | 370 | 20″×5 Spoke type |
| ZY-A1082 | 13 | 420×180 | 383 | φ127 | ≥980 | 6×3/4” | φ285.75 | φ241 | 1850 | HM518445 | ≈2180 | 375 | 20″×6 Spoke type |
| ZY-A1083 | 13 | 420×180 | 383 | φ150 | ≥940 | 5×3/4” | φ285.75 | φ241 | 1850 | HM518445 | ≈2180 | 370 | 20″×5 Spoke type |
| ZY-A1084 | 13 | 420×180 | 383 | φ150 | ≥940 | 5×3/4″ | φ285.75 | φ241 | 1850 | HM518445 | ≈2180 | 378 | 20″×6 Spoke type |
Product Advantages
1. Strong Load Capacity
Designed for heavy-duty transportation applications, capable of handling large cargo loads and harsh operating conditions.
2. Superior Durability
The reinforced spoke hub structure improves resistance to deformation and mechanical stress.
3. Excellent Off-Road Performance
Ideal for mining areas, construction sites, mountain roads, and unpaved transportation routes.
4. Convenient Maintenance
Simple structural design allows quick wheel replacement and reduced maintenance downtime.
5. Stable Braking System
Equipped with high-quality drum brake components to ensure reliable braking efficiency and safety.
