The German Spoke Axle Series is a heavy-duty trailer axle system that combines European-style axle technology with rugged spoke wheel hub construction. Designed for mining transportation, engineering vehicles, heavy cargo trailers, and off-road transport applications, this axle series delivers exceptional load-bearing performance, superior durability, and stable braking efficiency under demanding operating conditions.

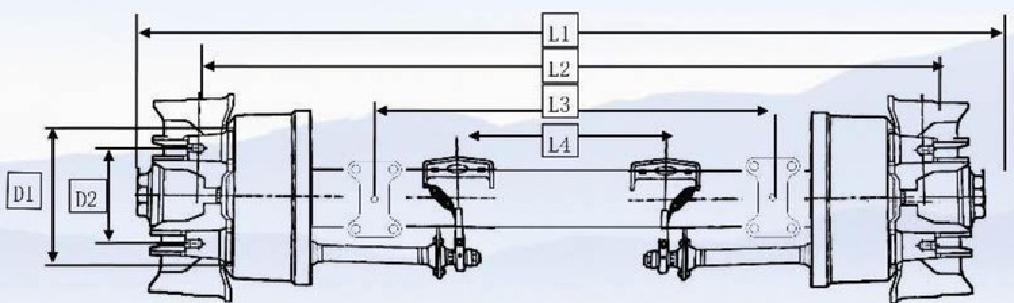

| Model | Capacity(T) | Brake(mm) | Distance of brake chamber L4 | Axle Tube (mm) | Center distance of spring seat L3 | Stud | P.C.D D1 | Seam allowance D2 | Track L2(mm) | Bearing Inner/Outer | Total Length L1(mm) | Weight(KG) | Recommend ed Wheel |
| ZY-A1074 | 12 | 420×180 | 419 | □150 | ≥980 | 6-M20x2 | 335 | φ290 | 1850 | 3321333118 | ≈2155 | ≈435 | 8.00V-24 147-24 |
| Z Y-A1075 | 13 | 420×200 | 380 | □150 | ≥980 | 6-M20x2 | 335 | φ290 | 1850 | 3321333118 | ≈2155 | ≈450 | 8.00V-24 147-24 |
| ZY-A1076 | 14 | 420×200 | 250 | □150 | ≥900 | 6-M20x2 | 335 | φ290 | 1850 | 3221933215 | ≈2192 | ≈475 | 8.00V-24 147-24 |
| Z Y-A1077 | 16 | 420×200 | 250 | □150 | ≥900 | 6-M20×2 | 335 | φ290 | 1850 | 32314 32222 | ≈2260 | ≈512 | 8.5V-24 147-24 |
| ZY-A1078 | 16 | 420×200 | 250 | □150 | ≥900 | 6-M20x2 | 335 | φ290 | 1850 | 3231432222 | ≈2260 | ≈532 | 8.5V-24 130-20 |
Product Advantages
1. Strong Heavy-Load Capacity
Designed for mining, construction, and industrial transportation requiring high load-bearing performance.
2. Excellent Durability
Reinforced spoke hub structure improves resistance to deformation, vibration, and harsh road conditions.
3. Reliable Braking Performance
High-quality brake components provide stable braking efficiency and improved driving safety.
4. Adaptability to Harsh Conditions
Suitable for mountain roads, mining sites, construction zones, and unpaved transport routes.
5. Easy Maintenance
Simple spoke wheel structure allows convenient wheel replacement and lower maintenance costs.
