The Low-Loader Series is a heavy-duty transportation solution specifically designed for carrying oversized cargo, construction machinery, mining equipment, and industrial vehicles. Featuring a low deck height and reinforced structural design, this trailer series provides superior loading stability, increased cargo capacity, and enhanced safety during long-distance transportation.

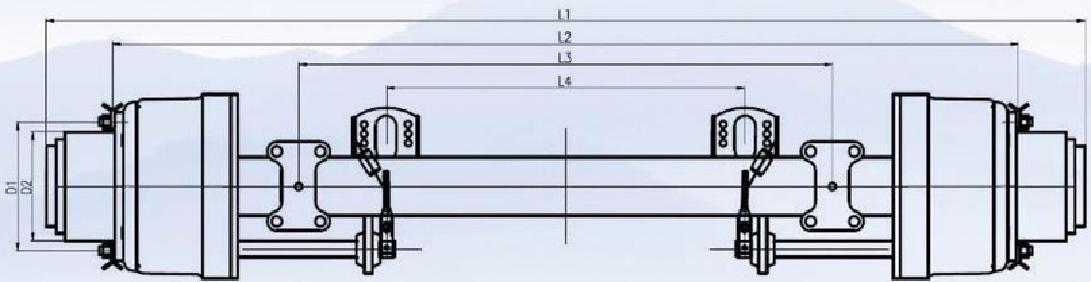

| Model | Capacity( T) | Brake(mm) | Distance of brake chamber L4 | Axle Tube(mm) | Center distance of spring seat L3 | Stud | P.C.D D1 | Seam allowance D2 | Track L2(mm) | Bearing Inner/Outer | Total Length L1(mm) | Weight(KG) | Recommend ed Wheel |
| ZY-A1085 | 10 | 311×190 | 420 | φ127 | ≥1000 | 10-M22x1.5 | 225 | 176 | 1850 | HM58445 | ≈2166 | 275 | 6.5-16 |
| ZY-A1086 | 11 | 311×190 | 448 | φ127 | ≥1000 | 0-M22x1.5 | 225 | 176 | 1850 | 33213 HM518445 | ≈2166 | 290 | 6.5-16 |
Product Advantages
1. Lower Center of Gravity
The low platform structure improves driving stability and transportation safety for heavy machinery.
2. Strong Load Capacity
Designed for transporting excavators, bulldozers, cranes, and other oversized industrial equipment.
3. Easy Loading & Unloading
Optional hydraulic or mechanical ramps simplify equipment loading operations.
4. Durable Structural Design
Reinforced frame construction provides excellent fatigue resistance and longer service life.
5. Wide Application Range
Suitable for construction projects, mining operations, industrial logistics, and port transportation.
