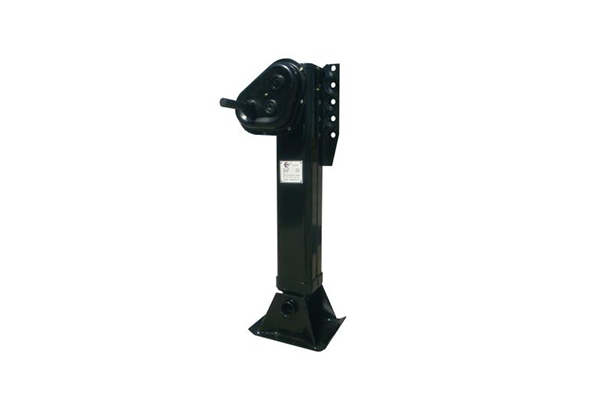

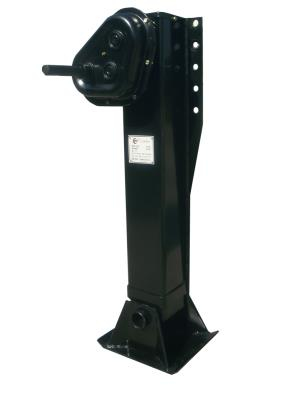

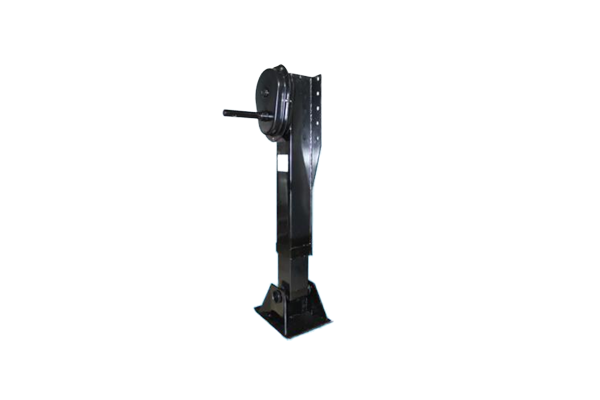

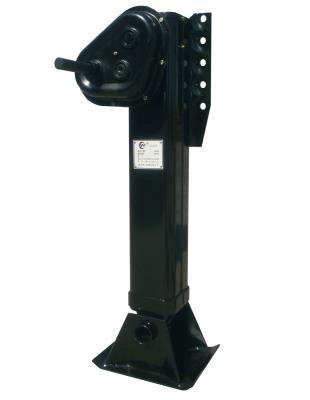

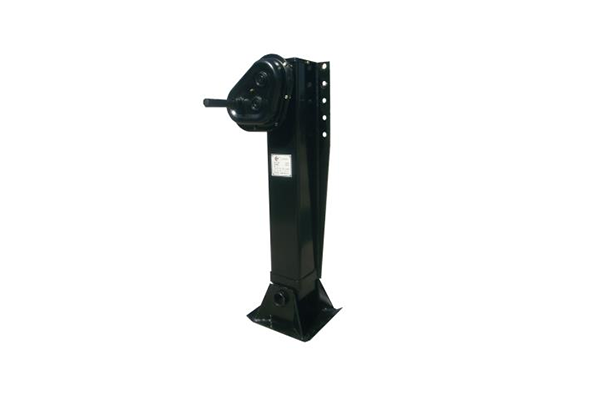

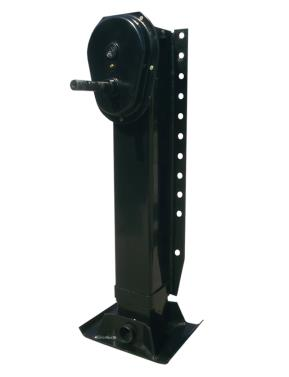

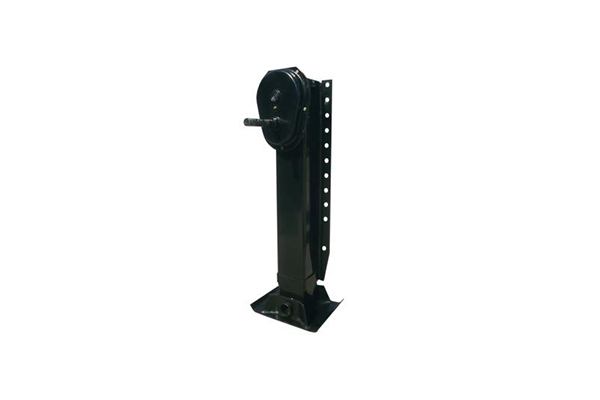

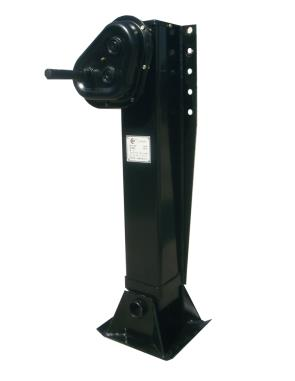

Fuwa Type Landing Gear 28T for Semi Trailer

Fuwa Type Landing Gear 28T

It is a commonly used front support device for semi-trailers, adopting a design standard compatible with the mainstream “Fuwa structure,” and features strong load-bearing capacity, high stability, and excellent cost performance. It is widely used in container, flatbed, low-bed, and engineering transport semi-trailers, with stable demand in markets such as Africa, the Middle East, and Southeast Asia.

Model：CL28TAF Static load capacity (t/set)：80(60) Lifting capacity (t/set)：28 High Gear (mm/r)：5.42 Low Gear (mm/r)：0.72 Travel Max (mm)：355 430 480 Assembly Height (mm)：727 802 852 Crank Force (kg)：29

Model：CL28TA Static load capacity (t/set)：80 Lifting capacity (t/set)：28 High Gear (mm/r)：5.42 Low Gear (mm/r)：0.72 Travel Max (mm)：355 430 480 Assembly Height (mm)：715 790 840 Crank Force (kg)：25

Model：CL28TVFY Static load capacity (t/set)：80 Lifting capacity (t/set)：28 High Gear (mm/r)：11.25 Low Gear (mm/r)：1 Travel Max (mm)：480 Assembly Height (mm)：850 Crank Force (kg)：35

Model：CL28TAFY Static load capacity (t/set)：80(60) Lifting capacity (t/set)：28 High Gear (mm/r)：5.42 Low Gear (mm/r)：0.72 Travel Max (mm)：480 Assembly Height (mm)：852 Crank Force (kg)：25

Model：CL24TVFY Lifting capacity (t/set)：24 High Gear (mm/r)：11.25 Low Gear (mm/r)：1 Travel Max (mm)：480 Assembly Height (mm)：843 Crank Force (kg)：28

Product Advantages：

High load-bearing capacity design, suitable for heavy-duty conditions
Easy to operate, dual-speed structure for higher efficiency
High versatility, compatible with mainstream vehicle models
High cost-performance ratio, low maintenance cost

Fuwa Type Landing Gear 28T

Fuwa Type Landing Gear 28T

Product Advantages：
